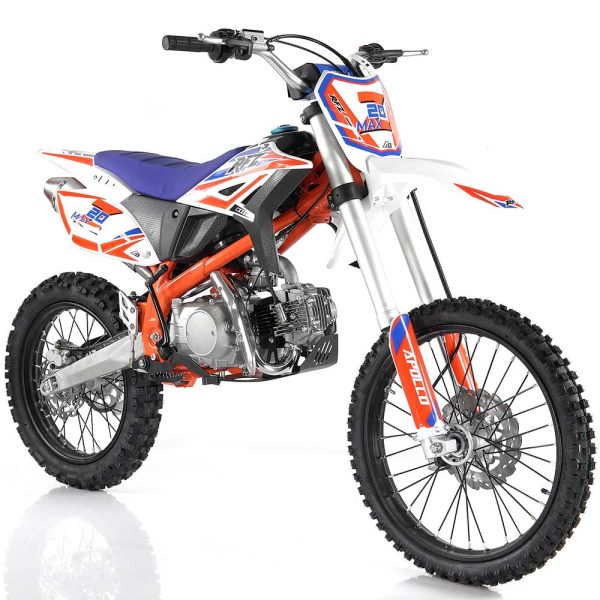

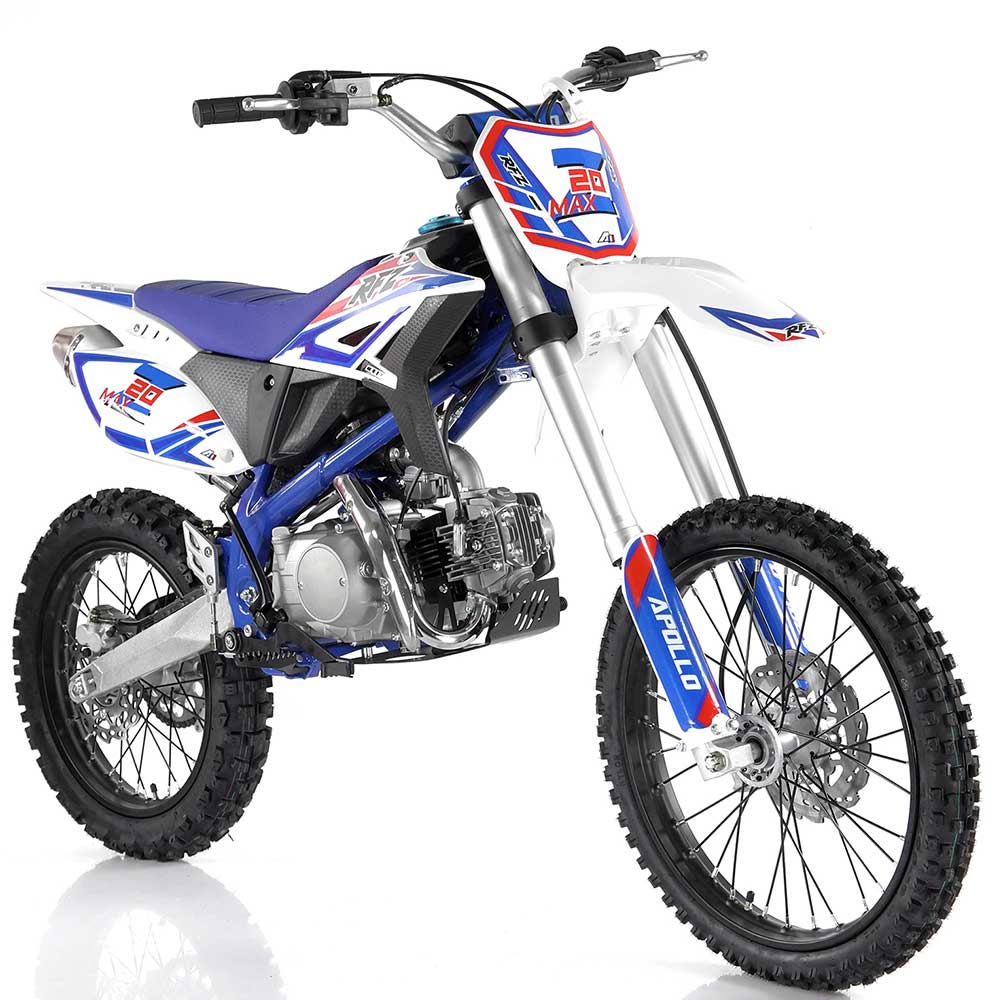

Apollo DBZ20 Max 125cc Dirt Bike

This product is currently out of stock and unavailable.

SKU: VT-APOLLO-DBZ20MAX-125 Category: Tags: , Brand:

Description

The Apollo DBZ20 Max 125cc Dirt Bike boasts all the same great design features of the regular Z20 but has larger tires and a taller seat. It’s features a sturdy double-beam steel frame. And durable, low-maintenance 125cc 4-stroke engine and 4 speed manual gearbox drive the bike.

Plus, the Z20 Max dirt bike comes with a big 19 inch front spoke wheel and 16 inch rear for even better off-road performance. Larger wheels and tires make it easier to climb over obstacles. Heavy-duty spoke wheels are perfect to tackle rough terrain. This motorcycle sits on 31 inch SYD brand forks. And an adjustable rear mono-shock and swing-arm setup provides 14 inches of ground clearance!

Also features front and rear hydraulic disc brakes! Aggressive all-terrain tires are super grippy for maximum stopping power! The DBZ20 Max 125cc Dirt Bike has a 34 inch seat height. That makes it one of the taller motorcycles in the 125cc class. It’s the perfect size to be a great play bike for older teens and adults.

Kick start. Choose from several great two-tone colors with cool racing graphics!

Specifications:

Model Apollo RFZ20 Max (Vitacci DBZ20 Max)
Engine single cylinder, 4 stroke, air-cooled
Engine brand YX
Displacement 125cc
Bore x Stroke 54x54mm
Carburetor PZ26
Compression ratio 8.8:1
Max power 7.8HP/7500rpm
Max torque 8.6N.m/5000rpm
Ignition CDI
Oil capacity 0.24 Gallon
Transmission 4-speed Manual (N-1-2-3-4)
Final Drive Chain
Starting system Kick
Fuel capacity 1.03 gal.
Suspension (front/rear) Non-Adjustable Telescopic SYD Brand Forks 31.9 inches / Adjustable Monoshock 13.8 inches
Brakes (front/rear) Hydraulic Disc / Hydraulic Disc
Wheels (front/rear) 19 inch / 16 inch Spoke Rims
Tires (front/rear) 70/100-19 / 90/100-16
Frame Double Beam Heavy Duty Steel
Seat height 34.5 inches
Ground clearance 14.5 inches
Wheelbase 49.2 inches
Max load TBD
Net Weight 192 lbs.
Gross Weight 221 lbs.
Dimensions (LxWxH) inches
Shipping Dimensions (LxWxH) 74x30.7x18 inches

Additional information

Weight 184 lbs
Dimensions 74 × 30.7 × 48 in
Color

Black, Blue, Green, Orange, Red

Bike Type

Dirt / Pit Bikes

Engine Type

4-Stroke

Transmission

Manual
